9208 - 9660STS and 9760STS Self-Propelled Combines (North American Edition) - 30Aug18
28 - Engine 6081HH027-RE529078( Двигатель HHRE)
1301, 1316 CRANKSHAFT DAMPER PULLEY AND FRONT SEAL( ДЕМПФЕР ШКИВА КОЛЕНВАЛА И ПЕРЕДНЕГО САЛЬНИКА)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | R523306 | Key | 1 | |||
| 2 | RE500917 | Torsional Damper | 1 | |||
| 3 | RE57604 | Torsional Damper | 1 | |||
| 4 | R26333 | Washer | 1 | |||
| 5 | R79846 | Cap Screw | 1 | |||
| 6 | R517166 | Pulley | 1 | |||
| 7 | R517167 | Pulley | 1 | |||
| 8 | 19H2633 | Cap Screw | 1 | 3/8" X 1-1/2" |
1496, 1499 FLYWHEEL HOUSING( МАХОВИК ЖИЛЬЯ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 19H2117 | Cap Screw | 6 | 5/16" X 1-1/8" | ||
| 2 | T27860 | Washer | 6 | |||
| 3 | R125027 | Housing | 1 | |||
| 4 | RE520036 | Seal | 1 | |||
| 5 | R520504 | Gasket | 1 | (SUB FOR R26058) | ||
| 6 | R121929 | Plug | 1 |
1501, 1519 FLYWHEEL( Маховик)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | RE502510 | Flywheel | 1 | SUB FOR RE57733; MARKED R501414 | ||
| 2 | R28811 | Ring Gear | 1 | z = 129 | ||
| 3 | T21242 | Washer | 6 | |||
| 4 | R93238 | Screw | 6 |
16DF FUEL INJECTION PUMP(ДФ ТОПЛИВНЫЙ НАСОС ВЫСОКОГО ДАВЛЕНИЯ )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
|---|---|---|---|---|---|---|---|
| 41 | 19M7783 | Screw | 3 | M10 X 16 | |||
| 42 | R504089 | Gear | 1 | ||||
| 43 | RE522834 | Valve | 1 | ||||
| 44 | R63548 | O-Ring | 2 | ||||
| 45 | R519759 | O-Ring | 1 | ||||
| 46 | RE504156 | Oil Line | 1 | ||||
| 47 | R67264 | Packing | 2 | ||||
| 48 | 14H1090 | Nut | 3 | 3/8" | |||
| 49 | 24M7239 | Washer | 3 | 10.700 X 21 X 2.500 mm | |||
| 50 | R76822 | Fitting | 1 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 51 | RE503059 | Adapter Fitting | 1 | ||||
| 52 | 24H1652 | Washer | 1 | 13/32" X 11/16" X 7/64" | |||
| 53 | 19H3124 | Screw | 1 | 3/8" X 1-1/2" | |||
| 54 | RE508670 | Check Valve | 1 | - | 232462 | ||
| RE520978 | Check Valve | 1 | 232463 | - | |||
| 55 | R63548 | O-Ring | 1 | ||||
| 56 | 51M7095 | O-Ring | 1 | 11.300 X 2.200 mm | |||
| 57 | RE503058 | Adapter Fitting | 2 | - | 232462 | ||
| RE522616 | Fitting | 2 | 232463 | - | |||
| 58 | R63548 | O-Ring | 1 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 59 | 38H5002 | Adapter Fitting | 1 | ||||
| 60 | 51M7095 | O-Ring | 2 | 11.300 X 2.200 mm | |||
| 61 | RE518423 | Fuel Injection Pump | 1 | - | 232462 | ||
| RE521422 | Fuel Injection Pump | 1 | 232463 | - | |||
| SE501918 | Fuel Injection Pump Reman | 1 | - | 232462 | |||
| SE501920 | Fuel Injection Pump Reman | 1 | 232463 | - | |||
| 62 | RE515638 | Hand Primer | 1 | ||||
| 63 | R515456 | Washer | 1 | ||||
| 64 | R515457 | O-Ring | 1 | ||||
| 65 | RE508773 | Engine Controller | 1 | - | 217748 | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| RE522515 | Engine Controller | 1 | 217749 | - |
1733, 1744 INTAKE MANIFOLD( ВПУСКНОЙ КОЛЛЕКТОР)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | R503926 | Intake Manifold | 1 | |||
| 2 | 15H690 | Pipe Plug | 1 | 3/4" | ||
| 3 | RE71255 | Pipe Plug | 1 | |||
| 4 | 51M7041 | O-Ring | 1 | 11.300 X 2.200 mm | ||
| 5 | RE61812 | Sensor | 1 | (LOW TEMPERATURE) | ||
| 6 | R130573 | Gasket | 3 | |||
| 7 | 24H1682 | Washer | 6 | 13/32" X 7/8" X 0.120" | ||
| 8 | 19H1651 | Cap Screw | 6 | 3/8" X 1-1/2" (ORDER 19H2633) | ||
| 19H2633 | Cap Screw | 6 | 3/8" X 1-1/2" |

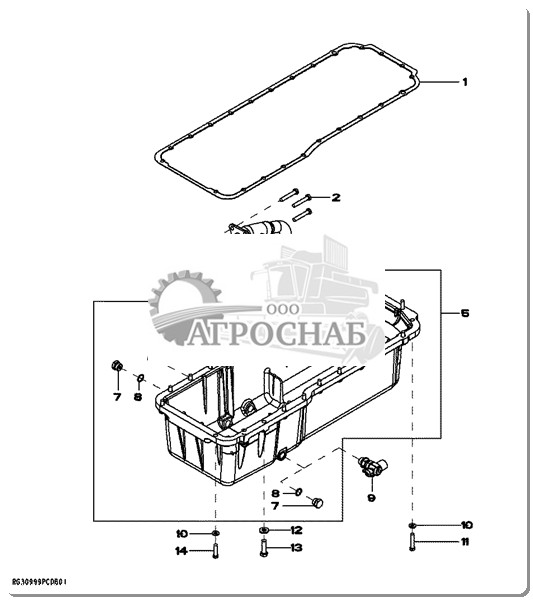

1902, 1944 OIL PAN( МАСЛЯНЫЙ ПОДДОН)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | R521228 | Gasket | 1 | (SUB FOR RE504822) | ||
| 2 | 19M9399 | Cap Screw | 3 | M10 X 60 | ||
| 3 | RE520585 | Oil Pump Intake | 1 | |||
| 4 | R100569 | Gasket | 1 | |||
| 5 | RE506165 | Oil Pan | 1 | (ORDER RE506166) | ||
| RE506166 | Oil Pan | 1 | (MARKED R500354 OR R500355) | |||
| 6 | 15H690 | Pipe Plug | 1 | 3/4" | ||
| 15H690 | Pipe Plug | 1 | 3/4" | |||
| 7 | R27474 | Drain Plug | 1 | |||
| 8 | R47151 | O-Ring | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 9 | RE509097 | Drain Valve | 1 | 7/8" | ||
| 10 | 24M7239 | Washer | 22 | 10.700 X 21 X 2.500 mm | ||
| 11 | 19H3485 | Cap Screw | 4 | 3/8" X 2" | ||
| 12 | R135895 | Washer | 2 | |||
| 13 | 19H2473 | Cap Screw | 2 | 1/2" X 1-3/4" | ||
| 14 | 19H1651 | Cap Screw | 18 | 3/8" X 1-1/2" | ||
| 19H2633 | Cap Screw | 18 | 3/8" X 1-1/2" |
2003 Water Pump( Водяной Насос)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | RE39134 | Seal | 1 | |||
| 2 | RE521496 | Seal Kit | 1 | |||
| 3 | ...... | O-Ring | 1 | (ORDER RE509463) | ||
| 4 | ...... | O-Ring | 1 | (ORDER RE509463) | ||
| 5 | R121316 | Ring | 1 | |||
| R26976 | O-Ring | 1 | ||||
| 6 | RE521503 | Pump Kit | 1 | (SUB FOR RE532595) | ||
| SE501595 | Water Pump Reman | 1 | (REMAN FOR RE521503) |

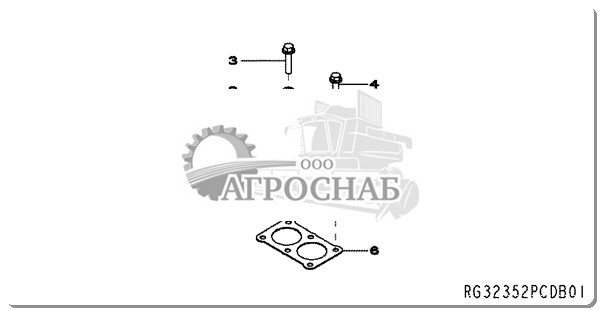

2101, 2105 THERMOSTAT COVER( КРЫШКУ ТЕРМОСТАТА)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AH89557 | Clip | 1 | |||
| 2 | R63845 | Washer | 1 | |||
| 3 | 19H3772 | Screw | 1 | 3/8" X 1-3/4" | ||
| 4 | 19H3683 | Screw | 2 | 3/8" X 1-1/2" | ||
| 5 | R86007 | Cover | 1 | |||
| 6 | R124607 | Gasket | 1 |

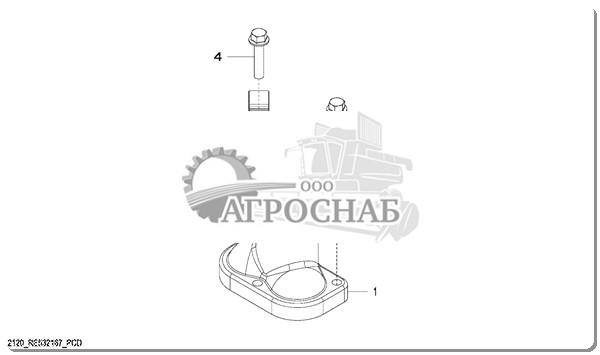

2120 Thermostat Cover( Крышку Термостата)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | R86007 | Cover | 1 | |||
| 2 | R63845 | Washer | 1 | |||
| 3 | AH89557 | Clip | 1 | |||
| 4 | 19H3772 | Screw | 1 | 3/8" X 1-3/4" | ||
| 5 | 19H3683 | Screw | 2 | 3/8" X 1-1/2" |

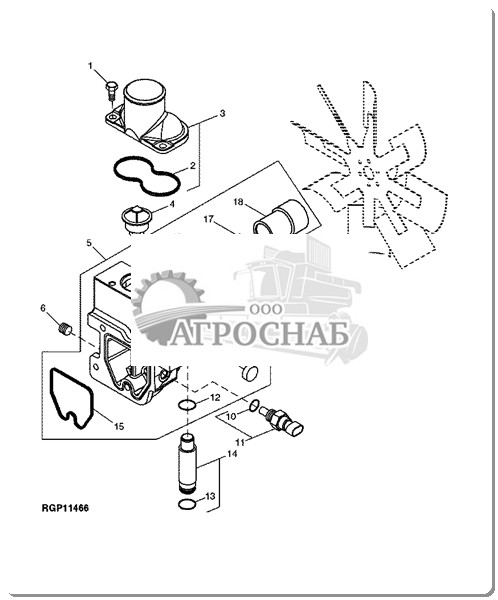

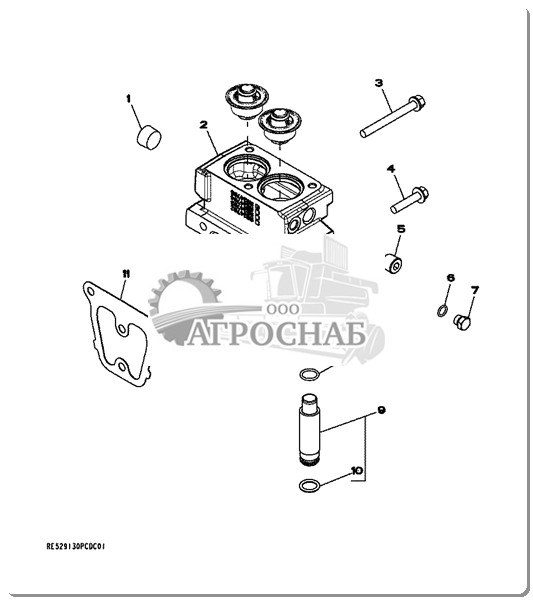

2201 Water Manifold and Thermostat( Водяной коллектор и Термостат)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | T53268 | Screw | 3 | |||
| 2 | R136151 | Seal | 1 | |||
| 3 | RE502570 | Cover | 1 | |||
| 4 | RE69581 | Thermostat | 2 | |||
| 5 | RE521287 | Housing | 1 | (MARKEDR505592 ) (SUB FOR RE515766) | ||
| 6 | RE57836 | Pipe Plug | 1 | |||
| 7 | R133998 | Screw | 2 | |||
| 8 | 19H3773 | Screw | 2 | 3/8" X 2" | ||
| 9 | N102039 | Plug | 1 | |||
| 10 | 51M7041 | O-Ring | 1 | 11.300 X 2.200 mm | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | RE48419 | Sensor | 1 | |||
| 12 | RE57190 | Seal | 1 | |||
| 13 | R504810 | O-Ring | 1 | |||
| 14 | RE509095 | Tube | 1 | |||
| 15 | R136063 | Seal | 1 | |||
| 16 | JD10058 | Ball Bearing | 1 | |||
| 17 | 40M1863 | Snap Ring | 1 | |||
| 18 | R518575 | Hub | 1 |

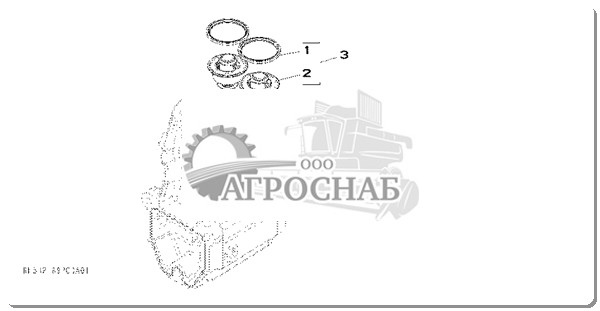

2209 Thermostat( Термостат)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | R521548 | Seal | 1 | |||
| 2 | RE69581 | Thermostat | 1 | |||
| 3 | RE532226 | Thermostat | 2 | (INCLUDES R521548 AND RE69581) |

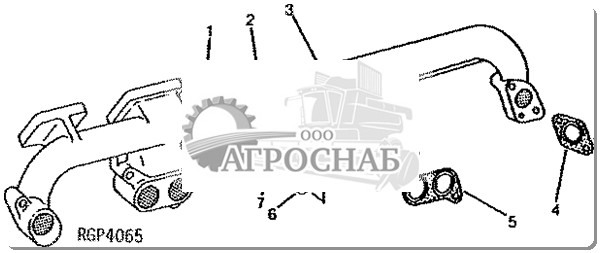

2818 Exhaust Manifold( Выпускной Коллектор)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | R127425 | Exhaust Manifold | 1 | (REAR) | ||
| 2 | R122595 | Ring | 2 | |||
| 3 | R127426 | Exhaust Manifold | 1 | (FRONT) | ||
| 4 | RE62777 | Gasket | 2 | (SUB FOR R521438) | ||
| 5 | RE62776 | Gasket | 2 | (SUB FOR R521437) | ||
| 6 | R63845 | Washer | 8 | |||
| 7 | 19H3031 | Cap Screw | 4 | 3/8" X 2-1/2" | ||
| 19H3267 | Cap Screw | 4 | 3/8" X 1-5/8" |
3013 (STARTING MOTOR)( НАЧИНАЯ МОТОР)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | T146102 | Label | 1 | (ENGLISH) | ||
| 2 | 24H1303 | Washer | 2 | 13/32" X 11/16" X 0.065" | ||
| 3 | 19H3219 | Cap Screw | 2 | 3/8" X 1-3/8" | ||
| 4 | E55662 | Flange Nut | 1 | |||
| 5 | R515224 | Stud | 1 | |||
| 6 | RE69704 | Starter Motor | 1 | |||
| RE70957 | Motor | 1 | (MARKED RE69704) (DENSO NO. 228000-6530) | |||
| SE501403 | Starter Motor Reman | 1 | (REMAN FOR RE70957 OR RE69704) | |||
| 7 | R135509 | O-Ring | 1 | |||
| 8 | RE71256 | Screw With Washer | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 9 | R135660 | Cover | 1 | |||
| 10 | R135510 | O-Ring | 1 | |||
| 11 | RE70486 | Switch | 1 | |||
| 12 | AH155483 | Wiring Lead | 1 |

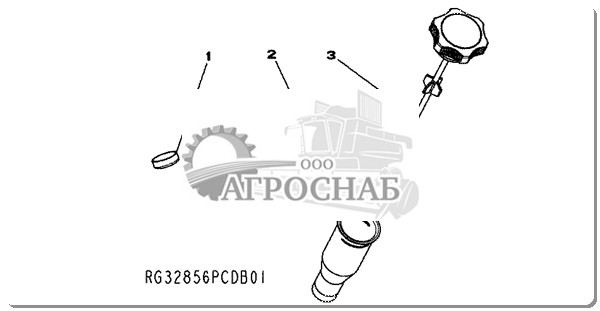

4021 Engine Oil Dipstick( Моторное Масло Щуп)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | T35390 | Plug | 1 | |||
| 2 | R503983 | Dipstick Tube | 1 | |||
| 3 | RE500218 | Dipstick | 1 |

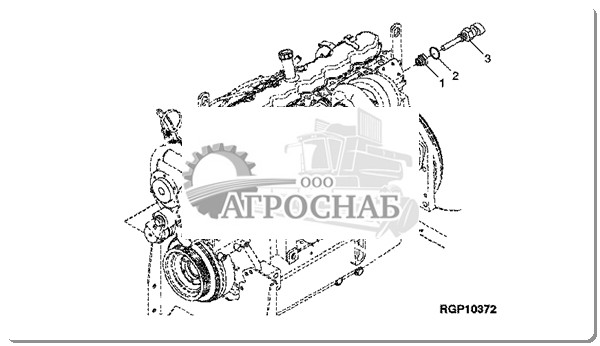

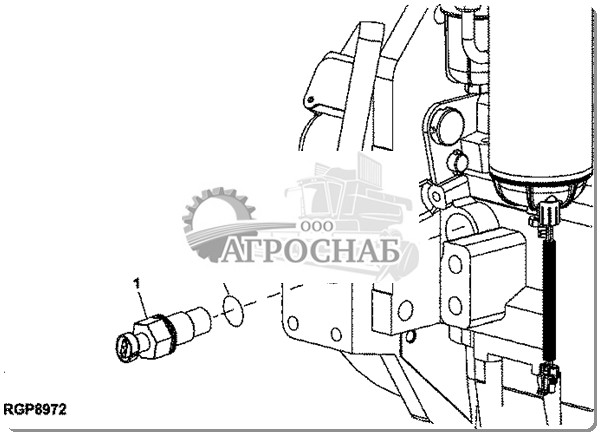

4401 Magnetic Pickup Sensor( Датчик Магнитный Датчик )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | RE508195 | Sensor | 1 | (SUB FOR RE71121, THIS APPLICATION) | ||
| 2 | 51M7044 | O-Ring | 1 | 17.300 X 2.200 mm | ||
| .. | RE501938 | Plug | 1 | (INCLUDES 51M7044) |
4701 Crankshaft And Bearings( Коленвал И Подшипники)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
|---|---|---|---|---|---|---|---|
| 1 | RE530437 | Crankshaft | 1 | - | 301522 | ||
| RE534314 | Crankshaft | 1 | 301523 | - | |||
| 2 | R41934 | Dowel Pin | 1 | ||||
| 3 | 34M7089 | Spring Pin | 1 | ||||
| 4 | R120752 | Key | 1 | ||||
| 5 | R104587 | Gear | 1 | ||||
| 6 | R32617 | Retainer | 1 | ||||
| 7 | RE529320 | Thrust Bearing | 1 | (SUB FOR RE504198 OR RE528404)STD | |||
| 8 | RE529319 | Bearing | 6 | (SUB FOR RE528403)STD | |||
| RE504196 | Bearing | AR | 0.292 MM (.011") US | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| RE504197 | Bearing | AR | 0.552 MM (.022") US | ||||
| 9 | RE504198 | Thrust Bearing | 1 | (SUB RE529320)STD | |||
| RE504199 | Thrust Bearing | AR | 0.292 MM (.011") US | ||||
| RE504200 | Thrust Bearing | AR | 0.552 MM (.022") US |

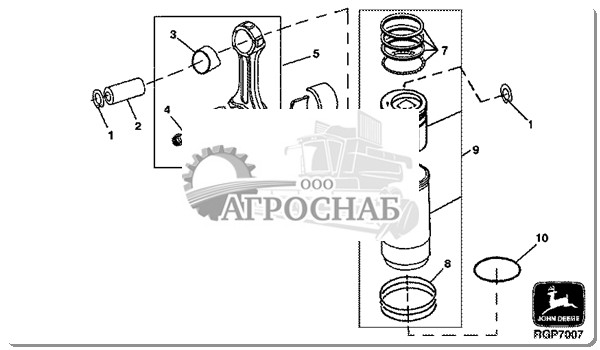

4806 Connecting Rods and Pistons( Шатуны и поршни)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | E1343FN | Snap Ring | 12 | |||
| 2 | R57771 | Piston Pin | 6 | |||
| 3 | R74008 | Bushing | 6 | |||
| 4 | R542878 | Cap Screw | 2 | SUB FOR R501035 | ||
| 5 | RE501513 | Connecting Rod | 6 | (MARKED R501034) | ||
| SE501065 | Connecting Rod Reman | 6 | (MARKED R501034) (REMAN FOR RE501513) | |||
| 6 | R116081 | Bearing | AR | (CONTAINS (2) R116081) | ||
| RE57167 | Bearing | AR | (A) (CONTAINS (2) R121338) | |||
| 7 | RE503528 | Piston Ring | 6 | |||
| 8 | AR98850 | O-Ring Kit | 6 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 9 | RE508156 | Piston-Liner Kit | 6 | (B) (MARKED RE516291) | ||
| 10 | R93948 | Shim | 2 | (C) |

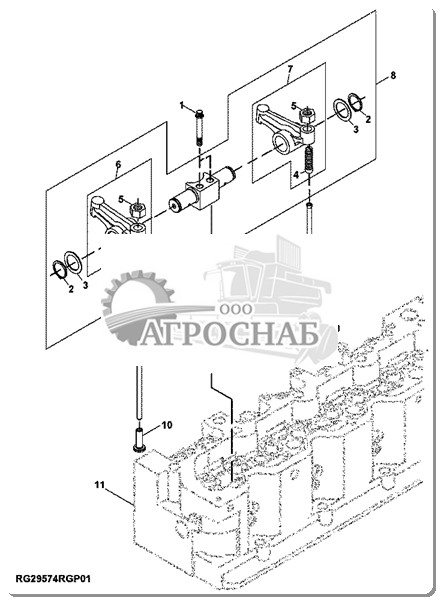

4902 Valve Actuating Mechanisms( Исполнительные Механизмы Клапана )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 19H3833 | Screw | 12 | 5/16" X 1-3/4" | ||
| 2 | ...... | Snap Ring | 2 | ORDER RE521278; APPL | ||
| 3 | U17408 | Washer | 2 | ORDER RE521278; APPL | ||
| 4 | R27443 | Set Screw | 2 | |||
| 5 | 14H1080 | Nut | 2 | 3/8" | ||
| 6 | RE24046 | Rocker Arm | 1 | (A) 1I, 2E , 3I , 4E, 5I , 6E; LH | ||
| 7 | RE24045 | Rocker Arm | 1 | (A) 1E, 2I , 3E , 4I, 5E , 6I; RH | ||
| 8 | RE521278 | Kit | 6 | |||
| 9 | R85027 | Push Rod | 12 | |||
| 10 | R110126 | Follower | 12 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| T20129 | Cap | 12 | ||||
| 11 | ...... | Cylinder Head | 1 |
5002 Oil Pump( Масляный Насос)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | RE519513 | Oil Pump | 1 | (MARKED R518347) (SUB FOR RE533975) | ||
| SE501270 | Oil Pump Reman | 1 | (A) MARKED R518347; REMA N FOR RE519513 OR RE533975 | |||
| RE507076 | Oil Pump | 1 | MARKED R504028 | |||
| SE500877 | Oil Pump Reman | 1 | (A) MARKED R504028; REMAN FOR RE507076) | |||
| 2 | R62943 | Quick Lock Pin | 1 | |||
| 3 | 24M7239 | Washer | 2 | 10.700 X 21 X 2.500 mm | ||
| 4 | 19M9399 | Cap Screw | 3 | M10 X 60 , (Use With RE519 513 Or RE533975 Or SE501270) | ||
| R104628 | Screw | 3 | (Use With RE507076 Or SE500877) | |||
| 5 | R71732 | O-Ring | 1 | |||
| 6 | R529397 | Gear | 1 | SUB FOR R526290 | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 7 | 14H826 | Nut | 1 | 1/2" | ||
| 8 | T21242 | Washer | 1 | |||
| 9 | 19H3219 | Cap Screw | 2 | 3/8" X 1-3/8" | ||
| 10 | R57696 | Washer | 4 | |||
| 11 | 19H3759 | Cap Screw | 2 | 3/8" X 1-7/8" | ||
| 12 | R500642 | Bushing | 2 |

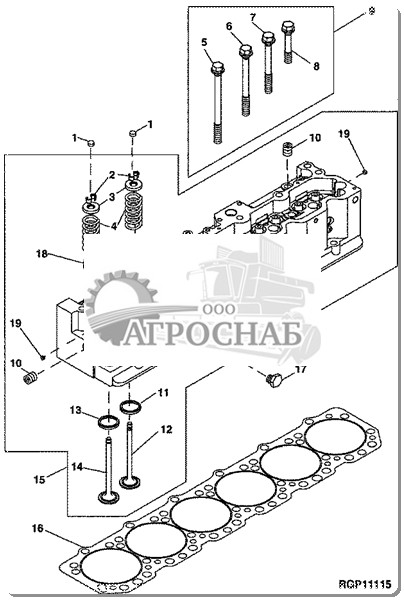

5104 Cylinder Head( Головка Блока Цилиндров)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | T20129 | Cap | 12 | |||
| 2 | T20077 | Retainer | 24 | |||
| 3 | R500098 | Cap | 12 | |||
| 4 | R502187 | Compression Spring | 12 | |||
| 5 | R121491 | Cap Screw | 7 | (A) (9/16" X 8.0") | ||
| 6 | R121490 | Cap Screw | 8 | (A) (9/16" X 6.9") | ||
| 7 | R502911 | Screw | 6 | (A) (9/16" X 4.8") | ||
| 8 | R502912 | Screw | 5 | (A) (9/16" X 6.4") | ||
| 9 | RE506501 | Bolt Kit | 1 | (A) | ||
| 10 | 15H690 | Pipe Plug | 11 | 3/4" | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | R121193 | Valve Seat Insert | 6 | (B) I | ||
| 12 | R84618 | Intake Valve | 6 | STD | ||
| R93308 | Intake Valve | AR | 0.08 mm (.003") OS | |||
| R93312 | Intake Valve | AR | 0.38 mm (.015") OS | |||
| R93314 | Intake Valve | AR | 0.76 mm(.030") OS | |||
| R93350 | Valve Seat Insert | 6 | 0.25 mm(.010") OS | |||
| 13 | R119132 | Valve Seat Insert | 6 | (B) E | ||
| 14 | R84619 | Exhaust Valve | 6 | STD | ||
| R93311 | Exhaust Valve | AR | 0.08 mm (.003") OS | |||
| R93313 | Exhaust Valve | AR | 0.38 mm (.015) OS | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| R93315 | Exhaust Valve | AR | 0.76 mm (.030") OS | |||
| R93349 | Valve Seat Insert | 6 | 0.25 mm (.010") OS | |||
| 15 | RE519894 | Cylinder Head | 1 | (MARKED R517486) | ||
| SE501577 | Cylinder Head Reman | 1 | (REMAN FOR RE519894) | |||
| 16 | RE55475 | Engine Cylinder Head Gasket | 1 | |||
| 17 | 19H2367 | Cap Screw | 1 | 5/8" X 3/4" | ||
| 18 | R501640 | Shield | 6 | |||
| 19 | R515575 | Plug | 2 |

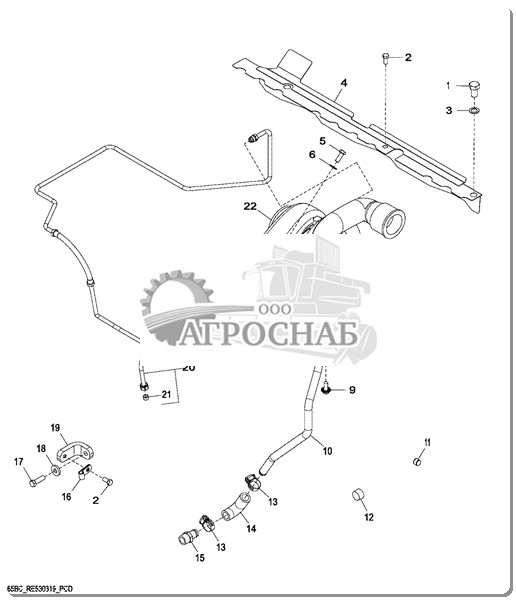

65BC Turbocharger(До н. э. Турбонагнетателя)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 19H1916 | Cap Screw | 1 | 5/8" X 1" | ||
| 2 | 19H1936 | Cap Screw | 2 | 3/8" X 3/4" | ||
| 3 | 24H1658 | Washer | 1 | 21/32" X 1" X 0.060" | ||
| 4 | RE506232 | Heat Shield | 1 | |||
| 5 | R54500 | Screw | 4 | |||
| 6 | 24H1305 | Washer | 4 | 13/32" X 13/16" X 0.065" | ||
| 7 | R89879 | Gasket | 1 | |||
| 8 | R521349 | Gasket | 1 | |||
| 9 | R124277 | Cap Screw | 1 | |||
| 10 | RE524697 | Oil Line | 1 | (A) | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | R61288 | Dowel Pin | 1 | |||
| 12 | 15H690 | Pipe Plug | 1 | 3/4" | ||
| 13 | RE65978 | Clamp | 2 | |||
| 14 | R520656 | Hose | 1 | |||
| 15 | RE524539 | Fitting | 1 | |||
| 16 | T28862 | Clamp | 1 | |||
| 17 | 19H2731 | Cap Screw | 1 | 7/16" X 1-3/8" | ||
| 18 | 24H1886 | Washer | 1 | 15/32" X 1-1/8" X 0.180" | ||
| 19 | R504765 | Bracket | 1 | |||
| 20 | RE508391 | Oil Line | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 21 | R67092 | Sealing Washer | 1 | |||
| 22 | SE502172 | Turbocharger Reman | 1 |
7699 OIL PRESSURE SWITCH( ДАТЧИК ДАВЛЕНИЯ МАСЛА)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | RE71255 | Pipe Plug | 1 |
7703 Timing Gear Cover( Передняя Крышка Шестерни)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 19H3693 | Screw | 1 | 3/8" X 1-1/4" | ||
| 2 | RE517059 | Washer | 1 | |||
| 3 | R115129 | Cap Screw | 3 | |||
| 4 | R98527 | Filter | 1 | |||
| 5 | R502083 | Cover | 1 | |||
| 6 | RE517370 | Fitting | 1 | SUB FOR RE501938 | ||
| 7 | 51M7044 | O-Ring | 1 | 17.300 X 2.200 mm | ||
| 8 | R104859 | Screw | 3 | |||
| 9 | R504811 | Washer | 1 | |||
| 10 | RE534261 | Seal | 1 | USE WITH RE530437 CRANKSHAFT; SUB RE543639 | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| RE529775 | Seal | 1 | USE WITH RE534314 CRANKSHAFT; SUB RE542195 | |||
| 11 | F1743R | Dowel Pin | 2 | |||
| 12 | R119384 | Gasket | 1 |

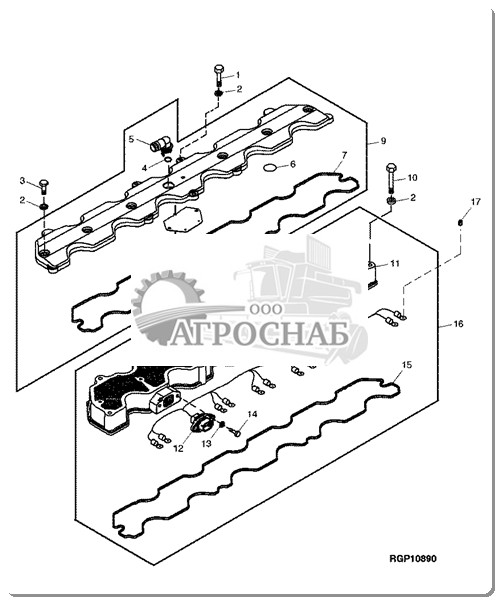

1102 Rocker Arm Cover( Коромысло Нарукавники )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 19H2151 | Cap Screw | 2 | 1/4" X 3" | ||
| 2 | 24H1286 | Washer | 15 | 9/32" X 1/2" X 1/16" | ||
| 3 | 19H1914 | Cap Screw | 7 | 1/4" X 1" | ||
| 4 | R72328 | O-Ring | 1 | |||
| 5 | R120467 | Elbow Fitting | 1 | |||
| 6 | R504093 | Seal | 4 | |||
| 7 | R502598 | Seal | 1 | |||
| 8 | 37H26 | Screw | 5 | 0.116" X 1/4" | ||
| 9 | RE505094 | Valve Cover | 1 | |||
| 10 | 19H2334 | Cap Screw | 6 | 1/4" X 2-1/2" | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | R502695 | Housing | 1 | |||
| 12 | RE509048 | Wiring Harness | 1 | INCLUDES R520373 | ||
| R520373 | Seal | 1 | ||||
| 13 | 24H1287 | Washer | 2 | 9/32" X 5/8" X 0.065" | ||
| 14 | 19H2036 | Cap Screw | 2 | 1/4" X 7/8" | ||
| 15 | R502719 | Seal | 1 | |||
| 16 | RE509265 | Housing | 1 | |||
| 17 | R134920 | Nut | 12 |

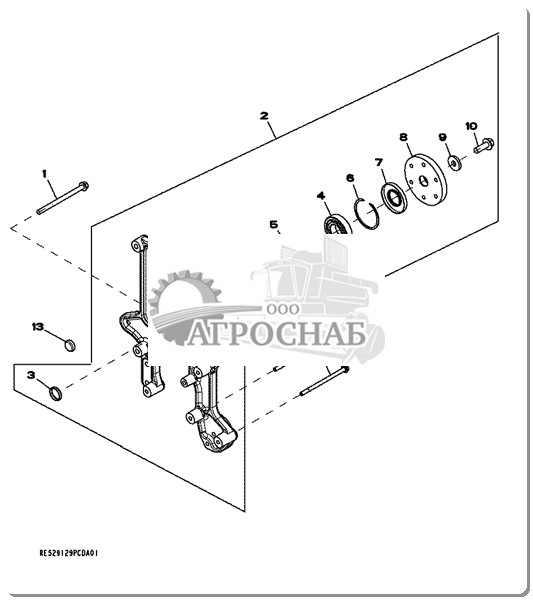

2342 FAN DRIVE( ПРИВОД ВЕНТИЛЯТОРА )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 19H3711 | Screw | 1 | 3/8" X 5-1/2" | ||
| 2 | RE523316 | Plate | 1 | |||
| 3 | R116466 | Plug | 1 | |||
| 4 | JD10329 | Ball Bearing | 2 | |||
| 5 | R516996 | Shaft | 1 | |||
| 6 | R62191 | Snap Ring | 1 | |||
| 7 | RE20768 | Seal | 1 | |||
| 8 | R135996 | Hub | 1 | |||
| 9 | 24M7226 | Washer | 1 | 13 X 35 X 5 mm | ||
| 10 | 19M7790 | Screw | 1 | M12 X 35 | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | R112273 | Screw | 1 | |||
| 12 | R135737 | Screw | 4 | |||
| 13 | N102039 | Plug | 1 | (SUB FOR A3910R) |

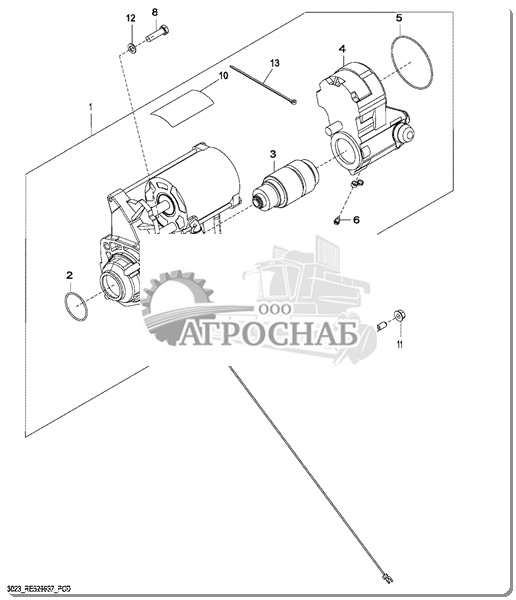

3023 Starter Motor( Стартер)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | RE529661 | Starter Motor | 1 | 12 V | ||
| SE501867 | Starter Motor Reman | AR | REMAN FOR RE529661 | |||
| 2 | R135510 | O-Ring | 1 | |||
| 3 | RE530311 | Clutch | 1 | |||
| 4 | RE530310 | Switch | 1 | |||
| 5 | R135509 | O-Ring | 1 | |||
| 6 | RE71256 | Screw With Washer | 1 | |||
| 7 | R515224 | Stud | 1 | |||
| 8 | 19H3219 | Cap Screw | 2 | 3/8" X 1-3/8" | ||
| 9 | AH155483 | Wiring Lead | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 10 | T146102 | Label | 1 | (A) | ||
| T146106 | Safety Sign | 1 | (B) | |||
| T146104 | Safety Sign | 1 | (C) | |||
| T146515 | Safety Sign | 1 | (D) | |||
| T146516 | Safety Sign | 1 | (E) | |||
| 11 | E55662 | Flange Nut | 1 | |||
| 12 | 24H1303 | Washer | 2 | 13/32" X 11/16" X 0.065" | ||
| 13 | R96703 | Tie Band | 1 |

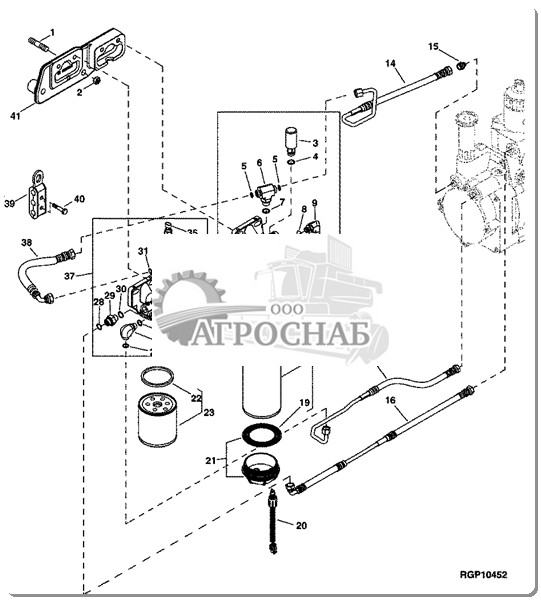

3510 Fuel Filter( Топливный Фильтр)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | R504516 | Stud | 2 | |||
| 2 | 14H1059 | Nut | 2 | 7/16" | ||
| 3 | RE523578 | Diagnostic Coupling | 1 | |||
| 4 | 51M7096 | O-Ring | 1 | 13.300 X 2.200 mm | ||
| 5 | R63548 | O-Ring | 2 | |||
| 6 | RE522143 | Adapter Fitting | 1 | (INCLUDES 51M7096 AND (2) R63548) | ||
| 7 | 51M7096 | O-Ring | 1 | 13.300 X 2.200 mm | ||
| 8 | R63548 | O-Ring | 1 | |||
| 9 | RE520968 | Check Valve | 1 | (INCLUDES R63548 AND 51M7096) | ||
| 10 | 51M7096 | O-Ring | 1 | 13.300 X 2.200 mm | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | 51M7095 | O-Ring | 1 | 11.300 X 2.200 mm | ||
| 12 | RE522144 | Drain Plug | 1 | (INCLUDES 51M7095) | ||
| 13 | RE520967 | Filter Head | 1 | |||
| 14 | RE520972 | Fuel Line | 1 | |||
| 15 | R518563 | Hose Guard | 1 | |||
| 16 | RE520981 | Fuel Line | 1 | |||
| 17 | RE520975 | Fuel Line | 1 | (INCLUDES R518563) | ||
| 18 | R519483 | Packing | 1 | |||
| 19 | ...... | Packing | NA | |||
| 20 | RE522685 | Sensor | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 21 | ...... | Sediment Bowl | NA | |||
| 22 | R519483 | Packing | 1 | |||
| 23 | RE522688 | Fuel Filter | 1 | 2 MICRON, (MARKED RE522684) (FINAL FILTER ) | ||
| 24 | 19H3693 | Screw | 4 | 3/8" X 1-1/4" | ||
| 25 | R63548 | O-Ring | 1 | |||
| 26 | RE522145 | Adapter Fitting | 1 | (INCLUDES R63548 AND 51M7096) | ||
| 27 | 51M7096 | O-Ring | 1 | 13.300 X 2.200 mm | ||
| 28 | R63548 | O-Ring | 1 | |||
| 29 | RE522518 | Fitting | 1 | (INCLUDES R63548 AND 51M7096) | ||
| 30 | 51M7096 | O-Ring | 1 | 13.300 X 2.200 mm | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 31 | R63548 | O-Ring | 1 | |||
| 32 | 51M7096 | O-Ring | 1 | 13.300 X 2.200 mm | ||
| 33 | RE520971 | Control Valve | 1 | (INCLUDES R63548 AND 51M7096) | ||
| 34 | 51M7041 | O-Ring | 1 | 11.300 X 2.200 mm | ||
| 35 | RE48419 | Sensor | 1 | |||
| 36 | 51M7095 | O-Ring | 1 | 11.300 X 2.200 mm | ||
| 37 | RE520969 | Filter Head | 1 | |||
| 38 | RE521473 | Fuel Line | 1 | |||
| 39 | RE509668 | Clamp | 1 | |||
| 40 | 19H1791 | Cap Screw | 2 | 1/4" X 1-1/4" | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 41 | R518524 | Bracket | 1 | |||
| 42 | RE522687 | Fuel Filter | 1 | (A) (10 MICRON), (MARKED RE522689 ) (INCLUDES R519483 AND RE522686) | ||
| RE522686 | Drain Valve | 1 |
3940 THERMOSTAT HOUSING( КОРПУС ТЕРМОСТАТА)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 15H690 | Pipe Plug | 1 | 3/4" (SUB FOR RE501736) | ||
| 2 | R524705 | Manifold | 1 | (SUB FOR R519580) | ||
| 3 | R133998 | Screw | 2 | |||
| 4 | 19H3772 | Screw | 1 | 3/8" X 1-3/4" | ||
| 5 | RE57836 | Pipe Plug | 2 | |||
| 6 | R77673 | O-Ring | 1 | |||
| 7 | R27094 | Drain Plug | 1 | (SUB FOR R82719) | ||
| 8 | R72328 | O-Ring | 1 | |||
| 9 | RE509095 | Tube | 1 | |||
| 10 | R504810 | O-Ring | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | R86062 | Gasket | 1 | |||
| 12 | 34H329 | Spring Pin | 1 | 5/16" X 1-1/4" |

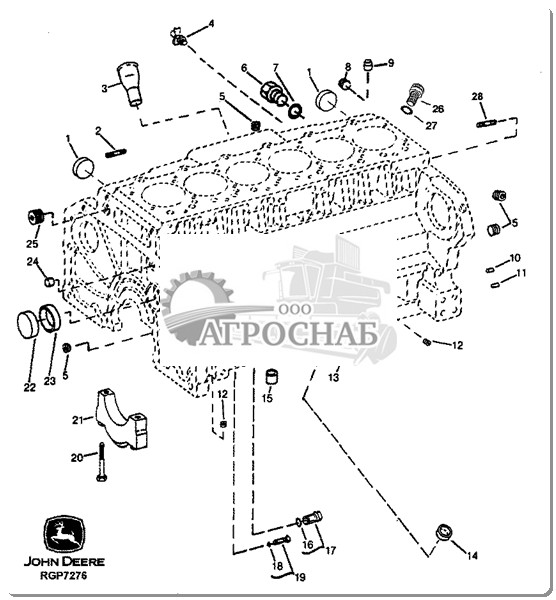

4613 Cylinder Block Fittings( Блок Цилиндров Штуцеры)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
|---|---|---|---|---|---|---|---|
| 1 | R43409 | Plug | 2 | ||||
| 2 | R114130 | Stud | 3 | (A) | |||
| 3 | R121765 | Dipstick Tube | 1 | ||||
| 4 | AT13740 | Drain Valve | 1 | ||||
| 5 | R36599 | Plug | 3 | ||||
| RE57836 | Pipe Plug | 1 | |||||
| 6 | R39741 | Drain Plug | 1 | ||||
| 7 | U13639 | O-Ring | 1 | ||||
| 8 | 15H690 | Pipe Plug | 1 | 3/4" | |||
| RE71255 | Pipe Plug | 1 | |||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 9 | R42340 | Bushing | 2 | ||||
| 10 | R1612R | Dowel Pin | 2 | ||||
| 11 | F1743R | Dowel Pin | 2 | ||||
| 12 | RE71255 | Pipe Plug | 6 | ||||
| RE71255 | Pipe Plug | 1 | |||||
| 13 | R43621 | Orifice | 6 | ||||
| 14 | T35390 | Plug | 1 | ||||
| 15 | R500642 | Bushing | 2 | ||||
| 16 | R27149 | O-Ring | 1 | ||||
| 17 | R121929 | Plug | 1 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 18 | A4365R | O-Ring | 1 | ||||
| 19 | DZ104494 | Plug | 1 | SUB FOR AR61589 | |||
| 20 | R122364 | Bolt | 14 | ||||
| 21 | R120953 | Bearing Cap | 6 | (B) | |||
| R120954 | Bearing Cap | 1 | (C) | ||||
| 22 | R82007 | Plug | 1 | ||||
| 23 | R87561 | Bushing | 4 | ||||
| 24 | R61288 | Dowel Pin | 1 | ||||
| 25 | 15H562 | Pipe Plug | 1 | 1" | |||
| 26 | R501255 | Plug | 1 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 27 | B2762R | O-Ring | 1 | ||||
| 28 | R114130 | Stud | 1 | ||||
| .. | RE524764 | Threaded Nipple | 1 | 256768 | - | ||
| .. | T35390 | Plug | AR | ||||
| .. | ...... | Cylinder Block | NA | ||||
| .. | R104592 | Pipe Plug | 1 | ||||
| .. | R71732 | O-Ring | 1 |
4802 Connecting Rods and Pistons( Шатуны и поршни)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | R525767 | Bearing | 12 | |||
| 2 | E1343FN | Snap Ring | 12 | |||
| 3 | R57771 | Piston Pin | 6 | |||
| 4 | DZ100118 | Connecting Rod | 6 | SUB FOR RE522977 OR RE 535555; MARKED DZ100422 | ||
| 5 | R74008 | Bushing | 1 | |||
| 6 | R66452 | Cap Screw | 2 | USE WITH R116340 | ||
| R542878 | Cap Screw | 2 | SUB FOR R501035 | |||
| 7 | RE508156 | Piston-Liner Kit | 6 | (A) PISTON MARKED RE516291 | ||
| 8 | RE503528 | Piston Ring Kit | 1 | |||
| 9 | AR98850 | O-Ring Kit | 1 |
5706 Water Pump Inlet( Водяной Насос Впускной)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AT13740 | Drain Valve | 1 | |||
| 2 | RE509328 | Cover | 1 | (MARKED R503425) | ||
| 3 | ...... | Seal | 1 | (2000 OPTION) | ||
| 4 | ...... | O-Ring | 1 | (2000 OPTION) | ||
| 5 | ...... | Ring | 1 | (2000 OPTION) | ||
| 6 | ...... | Seal Kit | 1 | (2000 OPTION) | ||
| 7 | ...... | Kit | 1 | (2000 OPTION) | ||
| 8 | 19H3411 | Screw | 2 | 3/8" X 1-1/8" | ||
| 9 | 19H1897 | Cap Screw | 1 | 5/16" X 3-3/4" | ||
| 10 | 24H1136 | Washer | 1 | 11/32" X 11/16" X 0.065" | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | R119383 | Gasket | 1 | |||
| 12 | AH89557 | Clip | 1 | |||
| 13 | 24M7096 | Washer | 3 | 10.500 X 18 X 1.600 mm | ||
| 14 | 19H3445 | Cap Screw | 3 | 3/8" X 3-3/4" |
5903, 5940 Oil Filter/Oil Cooler( Масло FilterOil Круче)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1A | R109625 | Gasket | 1 | (USE WITH R116233) | ||
| 1B | R504669 | Seal | 2 | (USE WITH RE509383 OR RE524007) | ||
| 2A | R116233 | Adapter Fitting | 1 | (SUB RE524007)NLA | ||
| 2B | RE524007 | Adapter Fitting | 1 | (MARKED R520491 OR R518 530 ) (SUB FOR RE509383) | ||
| 3 | 24M7346 | Washer | 2 | 11 X 20 X 2 mm | ||
| 4 | R40236 | Cap Screw | 2 | |||
| 5 | R126337 | Oil Tube | 1 | (SUB R518376) | ||
| 6 | R524512 | Oil Tube | 1 | (SUB FOR R116718) | ||
| 7 | R71732 | O-Ring | 2 |

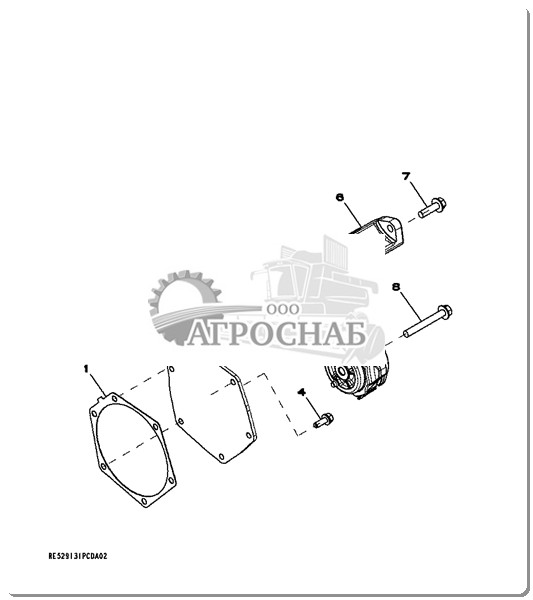

6235 ALTERNATOR MOUNTING( КРЕПЛЕНИЕ ГЕНЕРАТОРА )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | R502011 | Gasket | 1 | |||
| 2 | R50393 | Cover | 1 | |||
| 3 | R104861 | Screw | 1 | |||
| 4 | R112268 | Screw | 1 | |||
| 5 | RE518097 | Belt Tensioner | 1 | |||
| 6 | R519662 | Support | 1 | |||
| 7 | 19M7835 | Screw | 2 | M10 X 35 | ||
| 8 | 19M7810 | Screw | 1 | M10 X 80 |
6604 Temperature Sensor( Датчик Температуры )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
|---|---|---|---|---|---|---|---|
| 1 | H163652 | Fitting | 1 | 225289 | - | ||
| 2 | R77673 | O-Ring | 1 | 225289 | - | ||
| 3 | AH156145 | Sensor | 1 | 225289 | - |
9826 Lift Straps( Лифт Ремни)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | R61497 | Strap | 2 | |||
| 2 | 19H1916 | Cap Screw | 2 | 5/8" X 1" |
